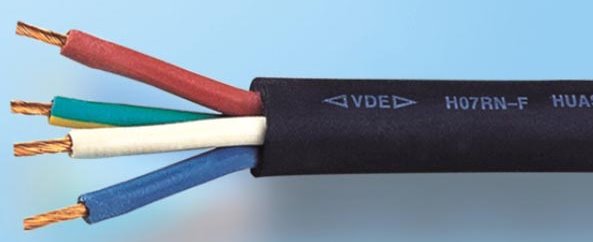

H07RN-F(H05RN-F)橡套軟電纜
應用范圍 : 交流額定電壓450/750V及以下的電動工具和移動電器設備的電源連接，且能承受較大的機械外力作用?？捎糜诟稍锖统睗竦氖覂?nèi)及室外，也適合固定安裝。該電纜主要作為尾纜用于為可移動備提供能量。加厚的橡膠電纜不僅性能提高，而且極易安裝。PCP橡膠電纜同時還具有防油防燃的性能。
技術參數 : 額定電壓: 450/750V
測試電壓 : 2500V
工作溫度: 長期工作溫度不超過65℃
彎曲半徑: 5-6倍電纜直徑
相關標準 : 根據 DIN VDE 282-4，BS6500標準銷售
| H07RN-F 電纜結構導體截面：1.0-300mm2額定電壓：450/750v |  |
| 線芯數×導體標稱截面 n × mm2 |
絕緣壁厚規定尺寸mm | 護套壁厚規定尺寸mm | 外徑的平均值 | Reference weight kg/km |
|
| 小尺寸 | 大尺寸 | ||||
| 1 × 1.5 | 0.8 | 1.4 | 5.7 | 7.1 | 59.0 |
| 1 × 2.5 | 0.9 | 1.4 | 6.3 | 7.9 | 74.0 |
| 1 × 4 | 1.0 | 1.5 | 7.2 | 9.0 | 99.0 |
| 1 × 6 | 1.0 | 1.6 | 7.9 | 9.8 | 129.0 |
| 1 × 10 | 1.2 | 1.8 | 9.5 | 11.9 | 200.0 |
| 1 × 16 | 1.2 | 1.9 | 10.8 | 13.4 | 279.0 |
| 1 × 25 | 1.4 | 2.0 | 12.7 | 15.8 | 396.0 |
| 1 × 35 | 1.4 | 2.2 | 14.3 | 17.9 | 540.0 |
| 1 × 50 | 1.6 | 2.4 | 16.5 | 20.6 | 719.0 |
| 1 × 70 | 1.6 | 2.6 | 18.6 | 23.3 | 947.0 |
| 1 × 95 | 1.8 | 2.8 | 20.8 | 26.0 | 1.230.0 |
| 1 × 120 | 1.8 | 3.0 | 22.8 | 28.6 | 1.520.0 |
| 1 × 150 | 2.0 | 3.2 | 25.2 | 31.4 | 1.887.0 |
| 1 × 185 | 2.2 | 3.4 | 27.6 | 34.4 | 2.300.0 |
| 1 × 240 | 2.4 | 3.5 | 30.6 | 38.3 | 2.960.0 |
| 1 × 300 | 2.6 | 3.6 | 33.5 | 41.9 | 3.585.0 |
| 2 × 1 | 0.8 | 1.3 | 7.7 | 10.0 | 89.0 |
| 3 × 1 | 0.8 | 1.4 | 8.3 | 10.7 | 111.0 |
| 4 × 1 | 0.8 | 1.5 | 9.2 | 11.9 | 146.0 |
| 5 × 1 | 0.8 | 1.6 | 10.2 | 13.1 | 192.0 |
| 2 × 1.5 | 0.8 | 1.5 | 8.5 | 11.0 | 128.0 |
| 3 × 1.5 | 0.8 | 1.6 | 9.2 | 11.9 | 157.0 |
| 4 × 1.5 | 0.8 | 1.7 | 10.2 | 13.1 | 192.0 |
| 5 × 1.5 | 0.8 | 1.8 | 11.2 | 14.4 | 238.0 |
| 7 × 1.5 | 0.8 | 2.5 | 13.4 | 17.5 | 371.0 |
| 12 × 1.5 | 0.8 | 2.9 | 17.6 | 22.4 | 516.0 |
| 18 × 1.5 | 0.8 | 3.2 | 20.7 | 26.3 | 770.0 |
| 19 × 1.5 | 0.8 | 3.3 | 21.0 | 26.3 | 788.0 |
| 24 × 1.5 | 0.8 | 3.5 | 24.3 | 30.7 | 968.0 |
| 2 × 2.5 | 0.9 | 1.7 | 10.2 | 13.1 | 177.0 |
| 3 × 2.5 | 0.9 | 1.8 | 10.9 | 14.0 | 217.0 |
| 4 × 2.5 | 0.9 | 1.9 | 12.1 | 15.5 | 269.0 |
| 5 × 2.5 | 0.9 | 2.0 | 13.3 | 17.0 | 329.0 |
| 7 × 2.5 | 0.9 | 2.5 | 14.4 | 20.0 | 499.0 |
| 8 × 2.5 | 0.9 | 2.6 | 15．7 | 21.5 | 590.0 |
| 12 × 2.5 | 0.9 | 2.9 | 17.6 | 22.4 | 719.0 |
| 18 × 2.5 | 0.9 | 3.2 | 20.7 | 26.3 | 1.068.0 |
| 19 × 2.5 | 0.9 | 3.4 | 22.0 | 28.0 | 1.068.0 |
| 24 × 2.5 | 0.9 | 3.5 | 24.3 | 30.7 | 1.400.0 |
| 2 × 4 | 1.0 | 1.8 | 11.8 | 15.1 | 249.0 |
| 3 × 4 | 1.0 | 1.9 | 12.7 | 16.2 | 298.0 |
| 4 × 4 | 1.0 | 2.0 | 14.0 | 17.9 | 373.0 |
| 5 × 4 | 1.0 | 2.2 | 15.6 | 19.9 | 466.0 |
| 2 × 6 | 1.0 | 2.0 | 13.1 | 16.8 | 327.0 |
| 3 × 6 | 1.0 | 2.1 | 14.1 | 18.0 | 407.0 |
| 4 × 6 | 1.0 | 2.3 | 15.7 | 20.0 | 514.0 |
| 5 × 6 | 1.0 | 2.5 | 17.5 | 22.2 | 640.0 |
| 2 × 10 | 1.2 | 3.1 | 17.7 | 22.6 | 586.0 |
| 3 × 10 | 1.2 | 3.3 | 19.1 | 24.2 | 716.0 |
| 4 × 10 | 1.2 | 3.4 | 20.9 | 26.5 | 898.0 |
| 5 × 10 | 1.2 | 3.6 | 22.9 | 29.1 | 1.107.0 |
| 2 × 16 | 1.2 | 3.3 | 20.2 | 25.7 | 810.0 |
| 3 × 16 | 1.2 | 3.5 | 21.8 | 27.6 | 1.008.0 |
| 4 × 16 | 1.2 | 3.6 | 23.8 | 30.1 | 1.253.0 |
| 5 × 16 | 1.2 | 3.9 | 26.4 | 33.3 | 1.564.0 |
| 2 × 25 | 1.4 | 3.6 | 24.3 | 30.7 | 1.157.0 |
| 3 × 25 | 1.4 | 3.8 | 26.1 | 33.0 | 1.451.0 |
| 4 × 25 | 1.4 | 4.1 | 28.9 | 36.6 | 1.846.0 |
| 5 × 25 | 1.4 | 4.4 | 32.0 | 40.4 | 2.291.0 |
| 3 × 35 | 1.4 | 4.1 | 29.3 | 37.1 | 1.901.0 |
| 4 × 35 | 1.4 | 4.4 | 32.5 | 41.1 | 2.393.0 |
| 5 × 35 | 1.4 | 4.7 | 36.2 | 45.8 | 2.684.0 |
| 3 × 50 | 1.6 | 4.5 | 34.1 | 42.9 | 2.580.0 |
| 4 × 50 | 1.6 | 4.8 | 37.7 | 42.5 | 3.284.0 |
| 5 × 50 | 1.6 | 5.1 | 41.5 | 47.0 | 3.950.0 |
| 3 × 70 | 1.6 | 4.8 | 38.4 | 48.3 | 3.386.0 |
| 4 × 70 | 1.6 | 5.2 | 42.7 | 54.0 | 4.331.0 |
| 5 × 70 | 1.6 | 5.6 | 46.8 | 50.0 | 4.893.0 |
| 3 × 95 | 1.8 | 5.3 | 43.3 | 54.0 | 4.483.0 |
| 4 × 95 | 1.8 | 5.9 | 48.4 | 61.0 | 5.712.0 |
| 3 × 120 | 1.8 | 5.6 | 47.4 | 60.0 | 5.182.0 |
| 4 × 120 | 1.8 | 6.0 | 53 | 66.0 | 6.828.0 |
| 4 × 150 | 2.0 | 6.5 | 58 | 73.0 | 8.319.0 |
| 4 × 185 | 2.2 | 7.0 | 64 | 80.0 | 10.062.0 |
| 4 × 240 | 2.4 | 7.7 | 72 | 91.0 | 13.125.0 |
| H05RN-F 電纜結構 |
| 導體截面：0.75-300mm2 |
| 額定電壓：300/500v |
| H05RN-F型一般性指標 | ||||
| 1 | 2 | 3 | 4 | 5 |
| 線芯數和導體標稱截面 | 絕緣壁厚規定尺寸 | 護套壁厚規定尺寸 | 外徑的平均值 | |
| 小尺寸 | 大尺寸 | |||
| mm2 | mm | mm | mm | mm |
| 2×0.75 | 0.6 | 0.8 | 5.7 | 7.4 |
| 2×1 | 0.6 | 0.9 | 6.1 | 8.0 |
| 3×0.75 | 0.6 | 0.9 | 6.2 | 8.1 |
| 3×1 | 0.6 | 0.9 | 6.5 | 8.5 |
